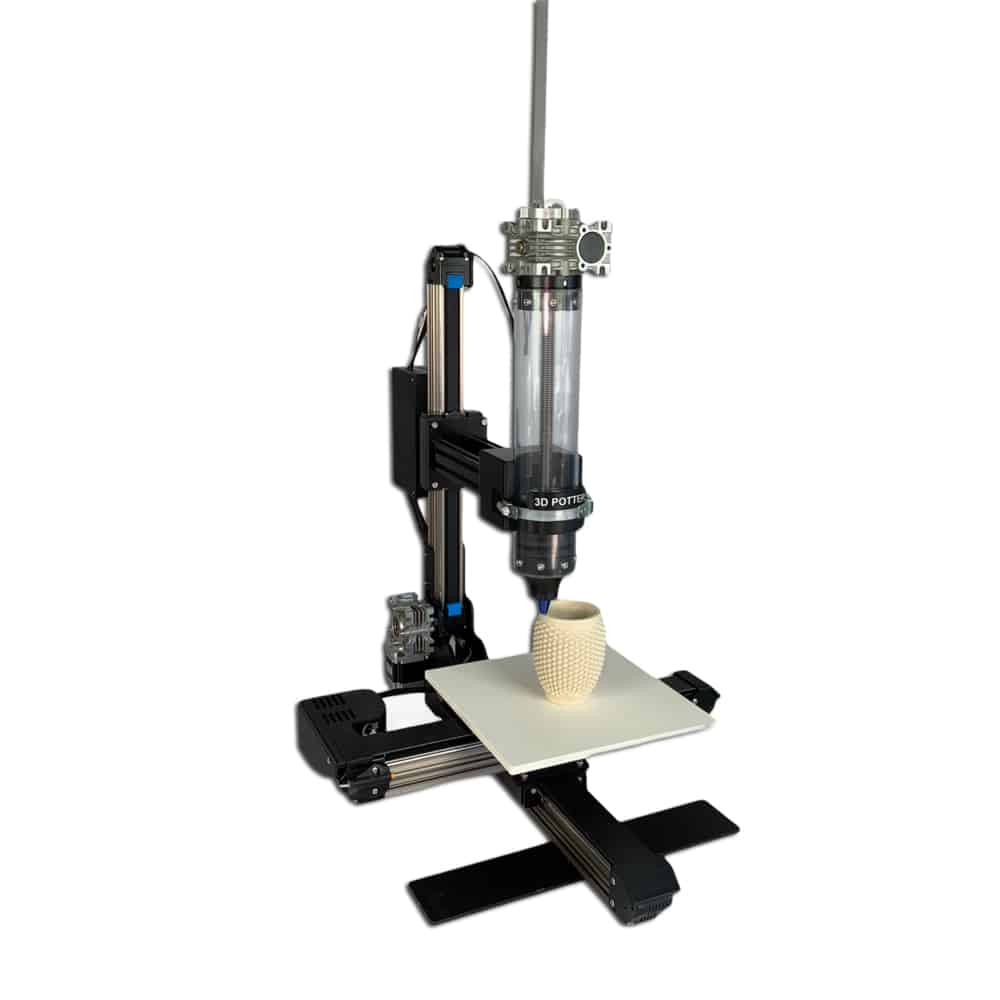

3D Potter PotterBot Mirco 10 Ceramic 3D Printer

Name: 3D Potter PotterBot Mirco 10 Ceramic 3D Printer
Brand: 3D Potter
SKU: 3DPotter-PotterBot-10-Micro
Availability: InStock

$3,499.00

The Micro is an entry level 3D ceramic printer. This is an ideal printer for the classroom environment or an individual artist that just wants to get started with the new technology.

SKU: 3DPotter-PotterBot-10-Micro Categories: 3D Ceramic Printers, Other Equipment Brand: 3D Potter

The Micro is an entry level 3D ceramic printer. This is an ideal printer for the classroom environment or an individual artist that just wants to get started with the new technology. It features the 1,000 ml extruder and the build envelope of up to 1 foot. Even though this is our smallest 3D clay printer, it is capable of the highest print speeds. Its compact design can easily fit in almost any space.

3D Potter printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of 3D Potter Potterbot 3d ceramic printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is 3D printing full body clay, or other paste-like materials. All materials used to build our clay printers are food grade, so get creative.

The 10th generation Potterbot 10 Micro brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine.

The 10th gen has a new uniform nozzle design for improved performance, across all of our printers. This allows you to interchange nozzles between all 3D Potter 3D clay printers, from the Micro to the Scara V4.

Whats Included: 3D Potterbot Micro
Stepper Motors on X, Y, Z, extruder
1000 ml extruder, 2 tubes
4 nozzles (standard sizes: 3.5, 4.13, 5, and 6.4 mm)
Parts Box: Alan key set, grease, Acme dual tool, tie wraps, extra screws
Power Supply, USB Cable

Specifications:
Printer Envelope: X-10″ (254mm) Y-10″ (254mm) Z-12″ (305mm)
Printer Size: W-21″ L-30″ H-28″
Operation Needed: W-22″ L-30″ H-50″
Bat Diameter (printer bed) 10.5″ (266mm)
Height to the top of the extruder fully extended is 50″ (1270mm)
Power Supply: Output – 24v 6 amps / Input – 110v-220v, 50-60 hz
(no 220v power plug supplied for customers outside of USA)
Power Cunsumption: 24v ~3 amps, ~72 watts
Main controller board running Duet3D with Atmel SAM4E8E: 120MHz ARM Cortex-M4
